Guardian Equipment AP275-615 Remote Sensing Alarm with 1-1/4" IPS

Application: Single pole, double throw flow switch for use with emergency equipment. Flow switch is installed in water supply line upstream of emergency unit. When unit is activated, switch senses the movement of water in the supply line. Switch can be used to activate alarm horn and light or send electrical signal to monitoring system.

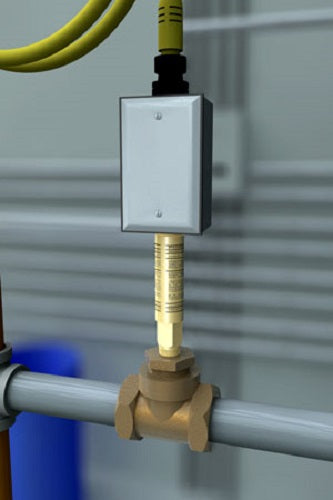

Installation: Flow switch is mounted in tee fitting that is installed in water supply line to emergency unit. Switch must be installed with tee fitting in horizontal position, flow switch body in vertical position and at least 6" from closest fitting. Direction of flow is marked on switch body. Furnished with weatherproof electrical junction box with gasketed cover. Switch operates at 125 volt up to a 5 amp max electrical connection.

Activation: AP275-615 activates at less than 2.4 GPM and deactivates at 2.0 GPM. AP280-615 activates at 3.0 GPM and deactivates at 1.75 GPM. AP285-615 activates at 1.5 GPM and deactivates at 1 GPM.

Quality Assurance: Unit is fully assembled, wired and factory tested prior to shipment.
