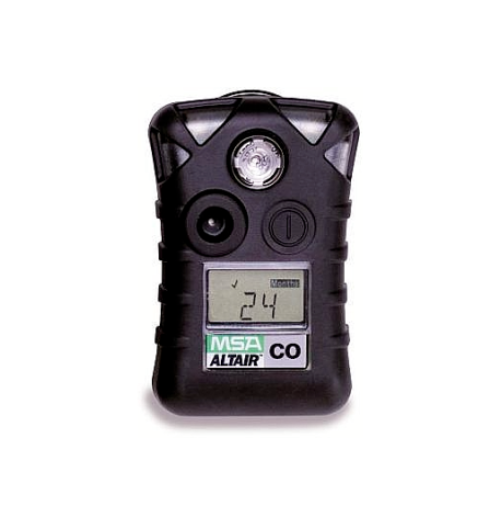

MSA ALTAIR 10092522 ALTAIR: Carbon Monoxide CO (Low: 25ppm, High: 100ppm) No Sales Tax and Free Shipping to your door! Part Number:10092522 Length:2.165 IN (55.000 MM)Width:2.126 IN (54.000 MM)Height:3.465 IN (88.000 MM)Weight:0.287 LB (0.130 KG)
The ALTAIR Pro Single-Gas Detector has a wide range of features, including simple intuitive operation, small rugged design and dependable technology. Innovative toxic gas and oxygen detectors are based upon ALTAIR Single-Gas Detector design, but with added features and functionality. • Tough rubberized housing • One-button operation • Accurately measures gas concentration or percent oxygen • Displays information on a large, clear, backlit LCD. • Superior dust and water protection (rated IP67 except for O2-R) • Event-logging and data-logging • Excellent impact resistance • Versions available for CO, H2S, O2, NH3, Cl2, ClO2, NO2, SO2, HCN, and PH3 • Great RFI performance • Adjustable alarm set points are offered for LOW, HIGH, TWA, and STEL • Alarms are indicated by flashing LEDs, audible alarm and internal vibrating alarm • Replaceable battery and sensor ALTAIR Pro Single-Gas Detectors provide worry-free performance, standing up to the roughest handling in tough industrial environments. Easily replaced sensors and battery keep detectors performing for years. ALTAIR Pro Single-Gas Detector’s unique design and competitive price makes it the clear choice when selecting a single-gas detection instrument. It is accurate, reliable, durable, easy to use, easy to maintain, and packed with features. Ease of use The ALTAIR Pro Single-Gas Detector combines user flexibility and functional simplicity. True single-button operation provides users with a clear path to any function. With a single button, users can: • Turn the unit on. • Activate the backlight. • Activate the infrared link for computer communication. • Display software version and alarm settings. • Perform fresh air setup (FAS). • Initiate a bump test. • Change calibration gas concentration. • Initiate calibration. • Reset peak reading display. • Manually change LOW, HIGH, TWA, STEL alarm set points (in protected SETUP mode only). • Turn the unit off. Packed with features • Built-in gas delivery adapter; no accessories are needed for gas response tests. • Distinctive triple alarm system leaves no doubt for users in alarm situations. • Piercing audio alarm averages 95 dB @ 1 foot and is distinctive from other workplace sounds.. • Extended frequency range covers a wide sound spectrum. • Visual alarm features dual LED displays located on the unit’s top, visible from all angles. • Internal vibrating alarm is standard, emitting a pulse that directly calls additional attention when in alarm mode.
WEIGHT 4.0 oz including clip DIMENSIONS 3.4" x 2.0" x 1.0" OPERATING T RANGE -20˚C to +50˚C (-4 to +122˚F) HUMIDITY 10-95% RH non-condensing WARRANTY See instruction manual for full warranty information INSTRUMENT LIFE Indefinite with sensor and battery replacement as needed BATTERY CR2 lithium camera battery (9000 hour installed life - typical) CASE Polycarbonate with rubberized shell DISPLAY Large LCD with backlight HUMIDITY 10-95% RH non-condensing INGRESS PROTECTION IP67 (except O2-R is IP54) DATA LOGGING 50 latest events in session log. Peak value every 3 minutes in periodic log. CERTIFICATIONS: US AND CANADA Class I, Div. 1, Groups A, B, C and D; Class II, Div. 1, Group G EUROPE Ex ia IIC T4 USA AEx ia IIC T4 EUROPEAN UNION ATEX II 2G Ex ia IIC T4 AUSTRALIA Ex ia IIC T4 (Ta = 50˚C)
Easily Replaceable, Commercially Available Battery The detector runs on a single, simple-to-install CR2 camera battery. Installed battery life is approximately 9,000 hrs (> 1 year). No long wake-up period; each time units are activated, small amounts of power are supplied to sensors even when units are powered off. Remote Oxygen Detector (O2-R) Remote oxygen version attaches remotely to the end of a 10-foot cable, rather than inside instrument housing. Users lower sensor into remote locations and monitor O2 levels from 10 feet away. Sensors ALTAIR Pro Single-Gas Detectors use fast-responding 20 Series oxygen and toxic sensors, meeting UL, cUL, ATEX, and Australian standards. Sensors simply plug into internal circuit board for fast, easy replacement. Built-In IR Communication (Event & Data Logging) Data logging is standard; unit automatically records 50 latest events in the session log, while simultaneously recording peak gas readings or low O2 readings every three minutes in a periodic data log. Combined, these tools provide a great way to assess alarm conditions, confirm bump tests or calibration and verify employee gas concentration exposures. To access data, simply link the unit to your MSA infrared adapter using standard built-in IR communication. MSA FiveStar® Link™ Software lets you view various logs, adjust alarm set points, assign specific names to units, and disable or activate particular features and options. Rugged Design Thick rubberized housing withstands accidental drops or other impacts and provides additional water ingress resistance. Metal screw inserts offer stability over the unit’s lifetime. Durable suspension clip completes this tough outer shell. Water and Dust Resistance ALTAIR Pro Single-Gas Detectors are highly water- and dust-resistant; sealed units exceed industry average IP rating. Test and Calibration Stations MSA offers the ALTAIR GALAXY® GX2 Automated Test System for complete automatic calibration and record-keeping of your ALTAIR Pro Single-Gas Detectors. MSA’s ALTAIR QuickCheck® Station is an easy and cost-effective way to perform daily alarm and gas response tests on your ALTAIR Pro Single-Gas Detectors. The station is available in manual and automatic versions and quickly verifies that instruments are ready for the upcoming day’s use
